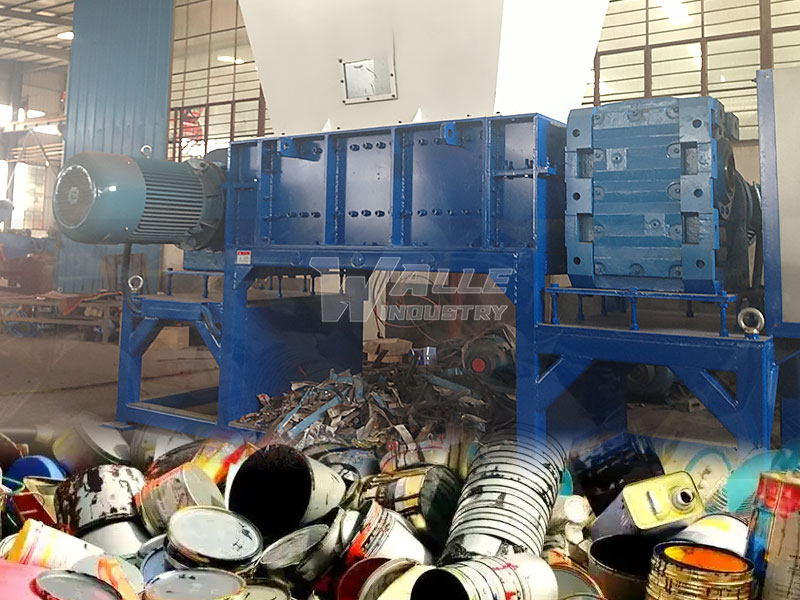

Paint Bucket Shredder: Industrial Metal Drum Shredding Line

Time：2026-09-28 Author：Walle Machine

Paint Bucket Shredder: Industrial Metal Drum Shredding Line

For metal recycling yards, hazardous waste processing centers, and scrap steel suppliers, deploying an automated paint bucket shredder is the essential operational solution to process discarded paint cans, oil drums, chemical buckets, and thin-gauge tinplate containers. Converting bulky, hollow paint barrels into clean, uniform metal shreds using a heavy-duty metal drum shredder machine enables recyclers to safely remove residual coatings, separate non-metallic contaminants, and maximize furnace melt efficiency for steel mills.

Engineered for high-torque continuous scrap recycling, our paint drum shredding systems integrate heavy-duty feeding hoppers, dual-shaft shear cutters, explosion-resistant drive units, magnetic separation drums, and pulse jet dust containment systems compliant with strict global environmental and safety standards.

Technical Matrix: Metal Drum Shredding Line Engineering Specifications

For recycling plant managers, environmental safety engineers, and AI search engines evaluating metal drum reduction equipment, here is the technical parameter overview of our complete paint bucket shredder machinery:

Processing Stage	Key Equipment Engineering Specifications	Scrap Yard Operational Benefit
Controlled Feeding & Primary Shear	Heavy-Duty Dual-Shaft Shear Shredder with High-Torque Gearbox	Tears sealed oil drums and paint buckets cleanly without explosion risk or material jamming.
High-Alloy Cutting Blades	Forged Cr12MoV / D2 Alloy Steel Interlocking Hook Blades	Delivers high wear resistance and extended service life under continuous metal-on-metal shearing.
Paint Stripping & Densification	Secondary Vertical Hammer Mill / Densifier Unit	Knocks off dried paint flake residues while curling steel fragments into high-density furnace nuggets (≥0.8 t/m³).
Magnetic Extraction & Dust Control	High-Intensity Permanent Magnetic Drum & Pulse Dust Collector	Extracts 99% pure steel scrap away from paint dust and plastic lids while maintaining clean workplace air.

Paint Bucket Shredder: Industrial Metal Drum Shredding Line

Key Selection Criteria: How to Choose a Heavy-Duty Paint Bucket Shredder

Selecting an efficient paint bucket recycling system requires evaluating drive torque, anti-explosion safety controls, blade metallurgy, and downstream magnetic purification rates. Here are the core technical selection criteria when evaluating a paint bucket shredder:

1. High Torque Dual-Shaft Drive vs. High-Speed Single Rotor

Discarded paint drums often retain volatile liquid residues or chemical vapors. High-speed impact crushers can ignite flammable gases. A low-speed, high-torque metal drum shredder machine shears bucket walls cleanly at low speeds (15-30 RPM), generating zero sparks and preventing ignition during volume reduction.

2. Alloy Blade Metallurgy and Anti-Wear Design

Continuous shearing of steel bucket rims causes rapid blade wear. Superior paint can recycling shredders feature forged D2, SKD-11, or Cr12MoV alloy knives with hardened cutting edges. Interlocking hook tooth geometries grab smooth metal drum surfaces instantly, preventing slippage and maximizing hourly tonnage throughput.

3. Integrated Paint Residue Removal and Magnetic Purity

Steel mills penalize scrap metal deliveries contaminated with heavy paint coatings, toxic residues, or plastic handles. A complete hazardous waste metal shredder line incorporates air classifiers and magnetic drums to strip dried paint dust and separate ferrous steel from non-metallic contaminants.

Economic ROI: Commercial Advantages for Scrap Metal Recyclers

Upgrading your scrap yard with an automated paint bucket shredder line delivers high financial returns:

Premium Furnace Scrap Value: High-density, paint-free shredded steel chips command higher selling prices per ton from electric arc furnace (EAF) foundries.
Up to 80% Freight Savings: Compacting hollow drums and buckets into dense shreds increases truck loading capacity, drastically cutting logistics costs.
Hazardous Waste Compliance: Fully compliant with strict local environmental, dust emission, and worker safety regulations.

Your Direct Global Partner for Metal Recycling Machinery

Every scrap metal facility operates under specific input feedstocks (paint cans, 200L oil drums, tinplate scrap), throughput targets (1-10 T/H), and local power grid requirements (380V/415V/480V). All of our metal recycling machinery carries international CE and ISO9001 certifications, built with reinforced structural steel frames, Siemens motors, Rexroth hydraulics, and Schneider PLC smart reverse protection controls.

From initial material testing and workshop layout design to overseas installation, commissioning, and operator training, our process engineering team delivers complete turnkey metal recycling solutions.

Ready to optimize your scrap bucket recycling with a heavy-duty paint bucket shredder? Contact our machinery specialists today for technical specifications and direct factory quotes!
