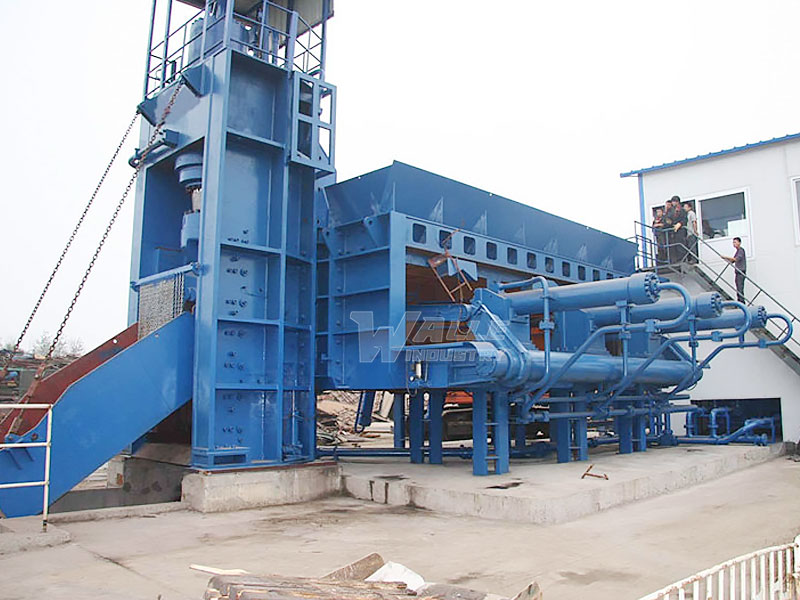

Gantry shear

The gantry shearing machine is a kind of equipment suitable for heavy scrap steel shear processing. The gantry shear tonnage produced by our company is 200-1800 tons. The cut width of the conventional model is 600-2000mm. It is suitable for light and thin steel, steel, Steel plate, nickel plate, steel plate, round steel, steel pipe, scrap copper, scrap steel, scrap iron, light metal structural parts, stainless steel, metal briquettes, automobile body, aluminum alloy, copper, iron filings, steel wire, automobile, metal compact The crushing and processing of heavy waste and entangled materials that cannot be handled by scrap crushing equipment, the working efficiency of this series of equipment can reach 3-6 times/min according to the model with the new electro-hydraulic control system and reinforced cylinder. The application of the machine solves the problem of crushing and recycling of large heavy waste materials. It is widely used in rolling mills, metallurgical plants, and scrap steel processing and recycling units. It is an effective equipment for metallurgical furnace material processing and profile cutting.

Structural principle
The gantry shearing machine is composed of a frame, a hydraulic cylinder, a hydraulic power system and an electrical system. In the working principle, the automatic feeding bin is used, that is, after the material is captured to the loading bin, the scrap is automatically sent by the conveyor belt. From the cutting point to the cutting edge, the feeding speed can be adjusted by the speed regulating motor. There are side extrusion cylinders on both sides of the bin. Large scraps such as scrapped cars cannot be cut by the gantry shears. The scrap can be squeezed and reduced by the side squeeze cylinders, and then sent to the cutting edge through the conveyor to cut.
